Wire Basket Cable Tray is an open mesh metal wiring support tray for lightweight cable routing with good heat dissipation and easy installation.
Bendin Wire Basket Cable Tray Manufacturer
Professional wire basket cable tray manufacturers boast mature production lines, strict galvanizing & welding quality control, customizable sizes/colors, competitive factory-direct pricing, stable bulk supply and complete export certification for global engineering projects.
Typical Projects of Bendin Wire Basket Cable Tray
- Large-scale data center server room wiring renovation
- Intelligent manufacturing factory workshop equipment cabling
- New energy photovoltaic & energy storage station power layout
- Shopping mall, airport and subway public building weak current engineering
- High-rise commercial office building integrated weak current system
- Medical hospital ward and laboratory comprehensive wiring project
Common specifications, standards, and parameters of Wire Basket Cable Tray
| Category |
Item |
Standard Values / Specifications |
| Core Dimensions |
Tray Width |
50 / 75 / 100 / 150 / 200 / 300 / 400 / 600mm (custom up to 1200mm) |
| |
Tray Depth (Height) |
50 / 75 / 100 / 150 / 200mm |
| |
Single Section Length |
3000mm (custom cut length available) |
| |
Wire Diameter |
4.0mm / 5.0mm / 6.0mm |
| |
Mesh Aperture |
50×50mm, 50×100mm |
| Material & Surface Finish |
Base Material |
Low carbon steel wire; Stainless steel 304 / 316 |
| |
Surface Treatment |
Electro-galvanized, hot-dip galvanized, powder coated, stainless steel natural |
| |
Salt Spray Resistance |
48–500 hours (varies by coating type) |
| Standards & Compliance |
International Standards |
IEC 61537, NEMA VE1, UL Listed |
| |
Domestic Standards (CN) |
JG/T 491-2016, T/ZZB 2423-2021 |
| |
Test Requirements |
Load bearing test, corrosion resistance test, grounding continuity test |
| |
Export Certifications |
CE, RoHS, ISO 9001, CCC |
| Mechanical & Installation |
Standard Support Span |
1.0m / 1.5m (max 2.0m) |
| |
Maximum Cable Filling Rate |
≤40% of tray cross-sectional area |
| |
Matching Accessories |
Straight connectors, elbows, tees, wall brackets, trapeze hangers |
| Electrical & Environmental |
Rated Operating Voltage |
AC/DC ≤ 1000V |
| |
Ambient Temperature Range |
-20℃ ~ +60℃ |
| |
Protection Grade |
IP40 (indoor); IP54 / IP66 (outdoor anti-corrosion models) |
| |
Grounding Performance |
Qualified as Equipment Grounding Conductor (EGC) |
| Customization Options |
Size Customization |
Non-standard width, depth, cut length |
| |
Color Customization |
Custom RAL color powder coating |
| |
Special Fittings |
Custom bends, reducers, variable diameter connectors |
| |
Functional Treatment |
Anti-magnetic treatment, heavy-duty load reinforcement |
Reputation and project experience of Bendin Wire Basket Cable Tray:
Bendin Wire Basket Cable Tray has a good industry recognition: has been operating in the field of Cable Tray for 10 years and has received good reviews from domestic and international customers.
Bendin Wire Basket Cable Tray has strong capabilities to ensure the smooth delivery of your project orders and provide reliable support for your orders.
Bendin Wire Basket Cable Tray service and support:
Pre-sales support: During the quotation and design stages, Bendin will respond sensitively and quickly provide you with the most suitable Cable Tray bridge frame project service plan and support under the guidance of professional technical engineers.
The professional production line, production, and inspection of Wire mesh cable tray ensure that your orders are consistently delivered on time, which has always been a good sign of the Bendin Wire mesh cable tray
After-sales service for Wire mesh cable tray: We will promptly handle any related issues in the field of Wire mesh cable tray bridge, provide spare parts, or offer timely installation technology.
Product Tags:
|
|

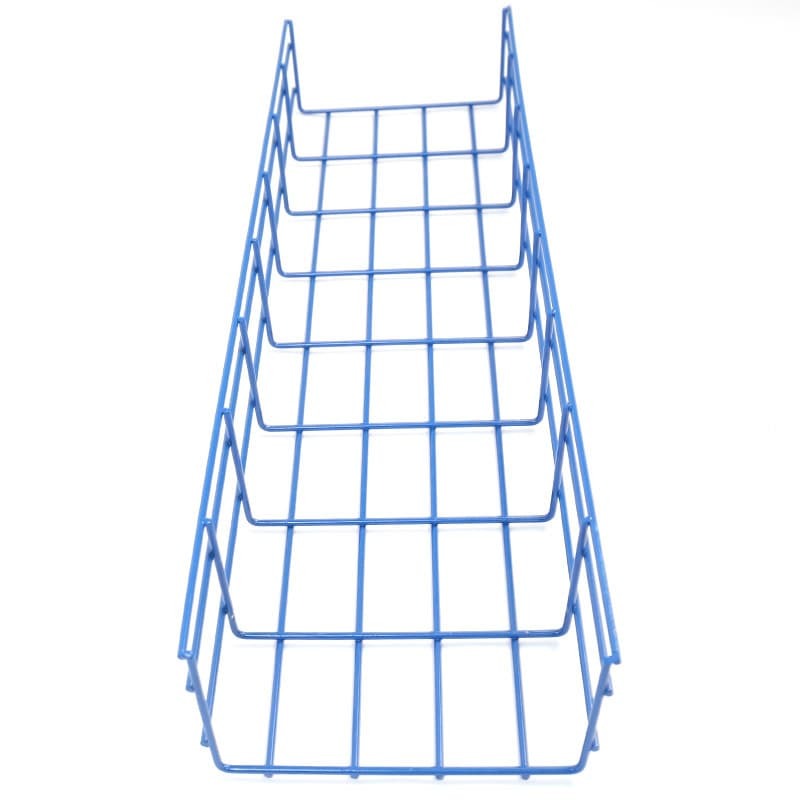

6 Inch Duplex Ss Wire Mesh Cable Tray ODM Acceptable Images
|
